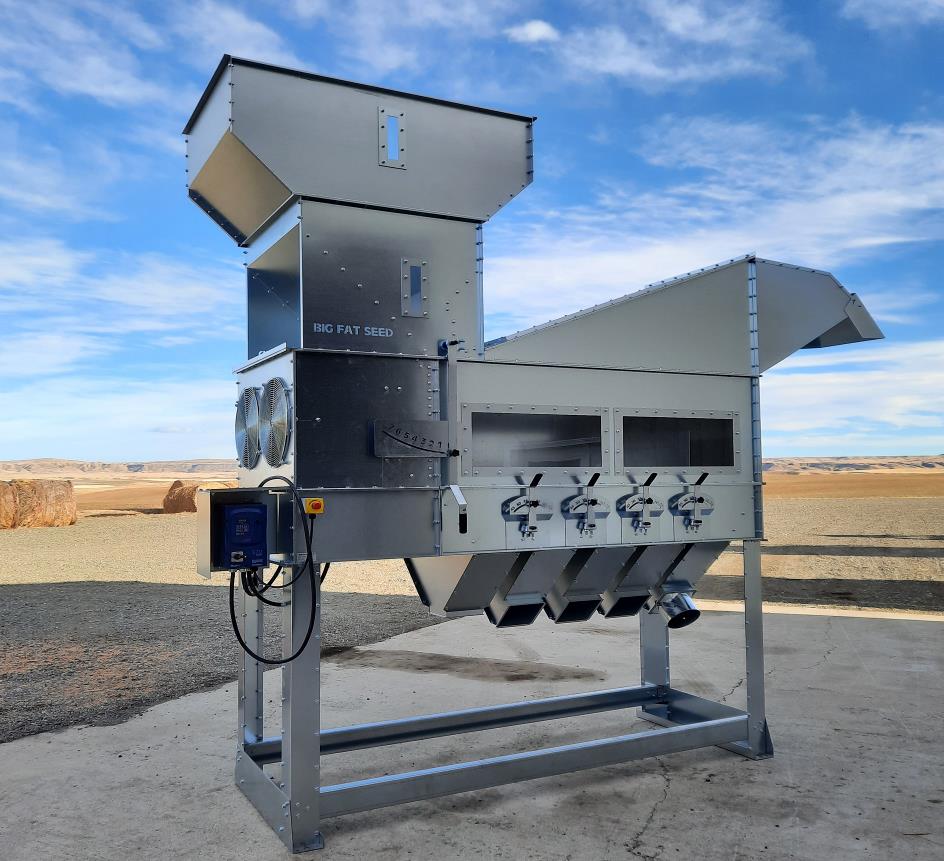

Operation of Big Fat Seed



Big Fat Seed is an air / gravity grain cleaner that separate dirt and seeds from one another using powerful airflow.
The Grain is filled into the inlet hopper, after which the grain runs in the machine as a thin layer ”like a waterfall”. The powerful airflow cleans and sorts the grain / seeds after density and a
ll light dust and dirt are removed with air low out of the machine.

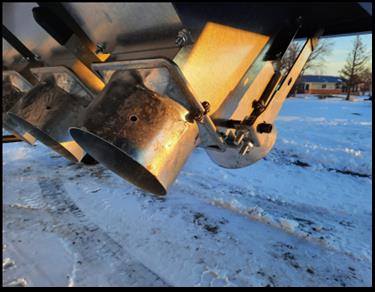

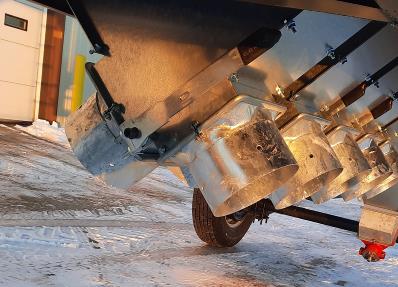

Grain / seeds and Stones comes out in

5 outlets on AG1650

4 outlets on AG440  / AG440 PLUS

1.        Stones
2.
The heaviest grain / seeds
3.
Second heaviest grain / seeds
4.
Light grain / seeds
5.
Very light and broken grain / seeds











The operation of Big Fat Seed is very simple and easy.
After starting the fan on, the speed of the fan controlled by the dial located at the front of the control panel.
The
seed inlet is then opened with the volume handle, and Big Fat Seed will now begin to clean and separate the grain/seed.
Fine tuning of the quality is a combination of the input volume and air speed from the axial fan.

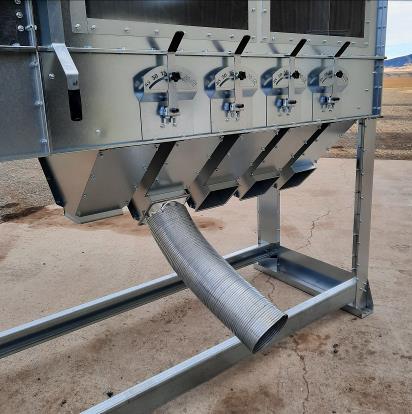

 On AG1650 is 4 small fine-tuners over the outlet and

 AG440 PLUS has 3 small fine-tuners over the outlet-

Big Fat Seed can sort all types of grains and crops.
It is easy, simple and quick to change the machine to which grains to sort.

Axial Fan

Control Panel

Volume Handel
